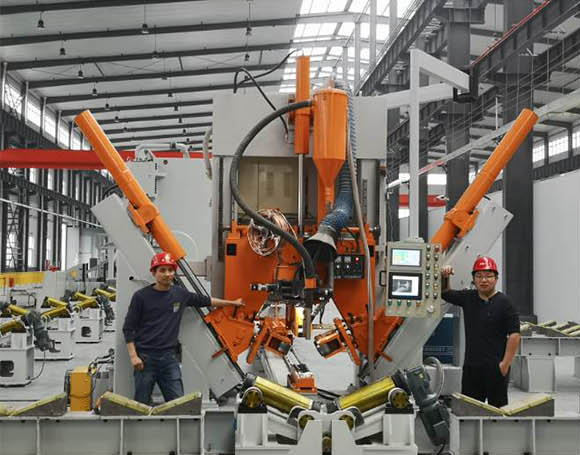

CNC pole shut-welding machine

1. Simple introduction

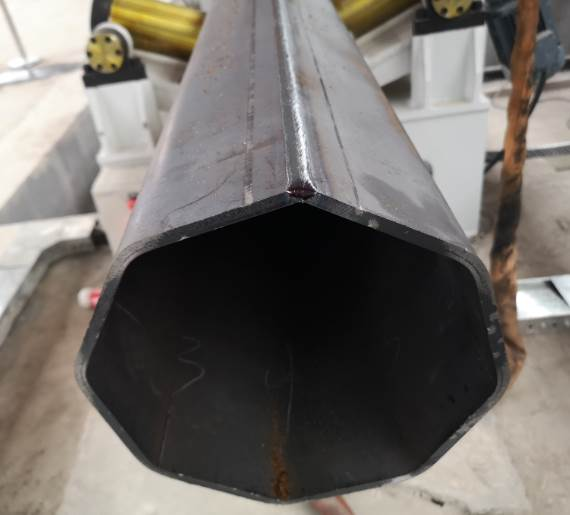

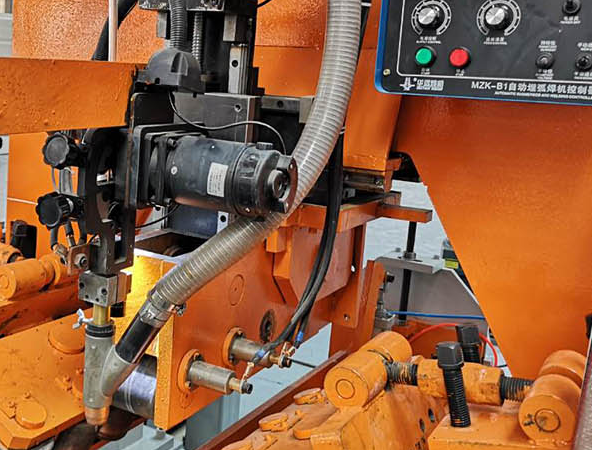

This machine is usually suitable for welding medium size polygonal and conical pole, especially suitable for the pole which only has one seam. It’s an automatic welding line. The trolley is equipped with adjustable speed motor, which can pull the pole to move. The hydraulic cylinder makes the pressure wheel tighten the pole and weld at the same time.Standard single arc single wire submerged arc welding machine.

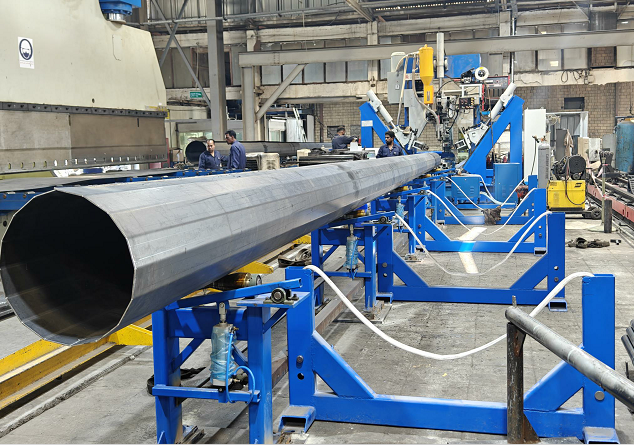

It is suitable for large length medium size pole longitudinal automatic closing welding, like 5G pole, mono-pole, high-mast pole and normal street light pole.

2. Technical parameters

No.	Item	Specification
1	Diameter of pole	60-500mm or customized
2	Worktable length	12000mm or customized
3	Thickness of pole	3-12mm or customized (500A MIG for 3-8mm and 630A SAW for 6-12mm)
4	Clamping feet quantity	3 sets
5	Motor power of oil pump	3+3KW
6	Mobile motor power	4KWspeed adjustable
7	Vertical pressing stroke	450mm
8	Operating height	The distance from the bottom angle of the pole to the groundis 850mm
9	MIG welder(standard)	Shandong Aotai 500A MIGwelder system
10	Welding wire diameter	1.2-1.6mm
11	Welding speed	0.5-3m/min stepless adjustable
12	Welding penetration rate	80%
13	Electrical components	Schneider, French
14	CNC system PLC	Siemens, Germany
15	Gross weight	10.5ton
16	Dimensions	2700035004500mm

3. Supply range

No.	Item	Remark
1	Long worktable for trolley moving	/
2	Main gantry frame	/
3	Trolley drive system	/
4	Unloading roller rack	5 sets, suitable for 12m pole
5	Hydraulic clamping part	Including clamping rollers, suitable for medium size pole
6	MIG welder system	500A welder, wire feeder, pipeline, wire
7	Hydraulic system	/
8	Control system	/
9	Camera	Welding seam monitoring system
10	Clamping roller	1 set suitable for mono-pole, high-mast , 5G pole mold
