No.

Item

Specification

1

Web height

200-2500mm

2

Web thickness

6-40mm(if web thickness ≥14mm, weld is acceptable but can not melt through)

3

Flange width

200-800mm

4

Flange thickness

6-60mm

5

H beam length

4000-15000mm

6

Welding speed

Depend on welding method

7

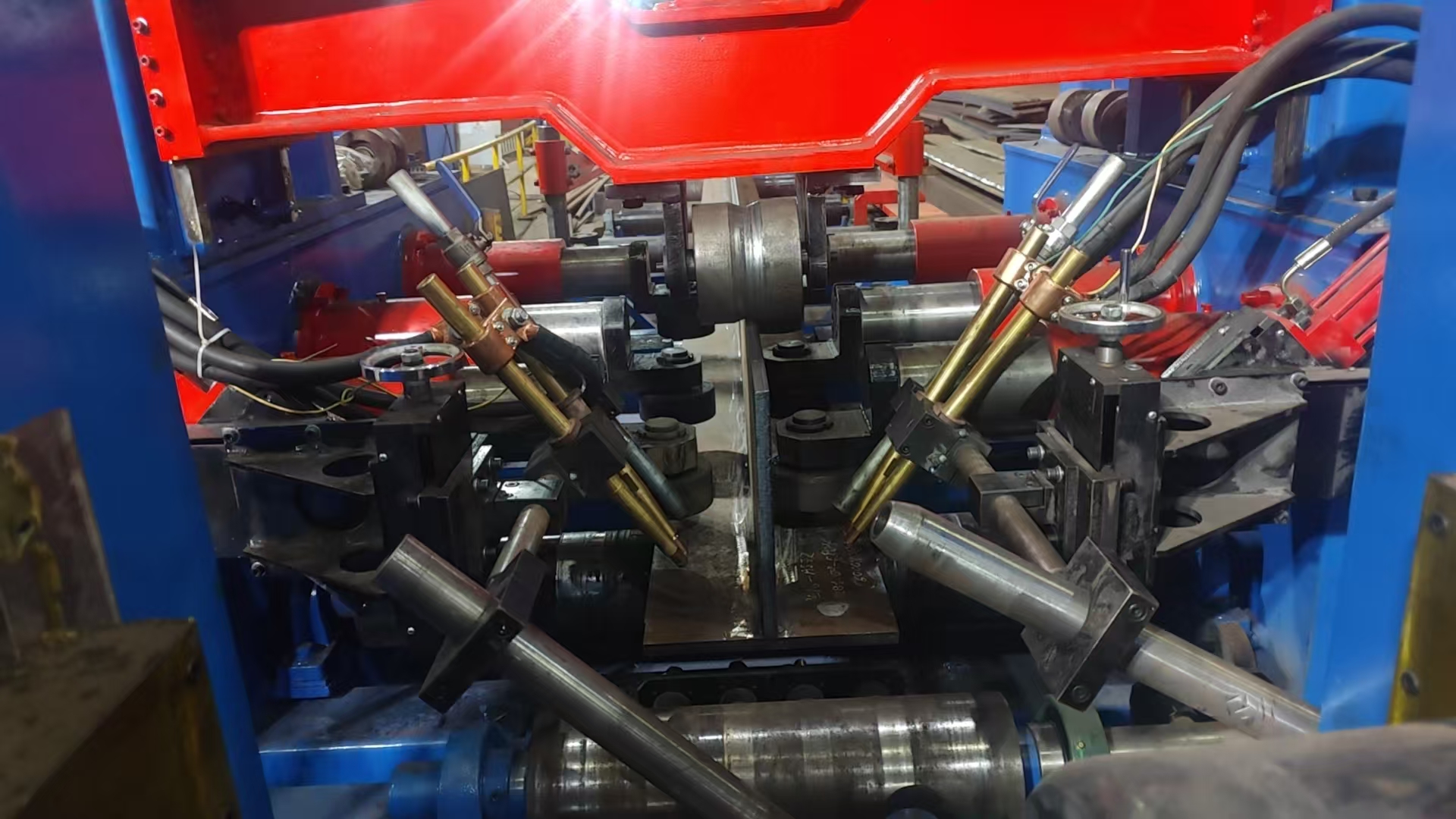

Welding way

Single arc single wire or twin arc twin wire

8

Welding wire diameter

Depend on welding method

9

Web positioning

Hand wheel + hydraulicdriven cylinders to centering

10

Flange clamp

Hand wheel + hydraulicdriven cylinders to centering

11

Control

PLC control

12

Conveyor

3 pieces of input conveyor (1 of them is motorized)

3 pieces of output conveyor (2 of them is hydraulic lift)

13

Pull rod

1 piece of power one + 1 of idler one, hydraulic driven

14

Tapered h beam

Within 8 degree

15

Flux recovery machine

3KW * 2

16

Voltage

AC380V 50HZ 3P or customized
